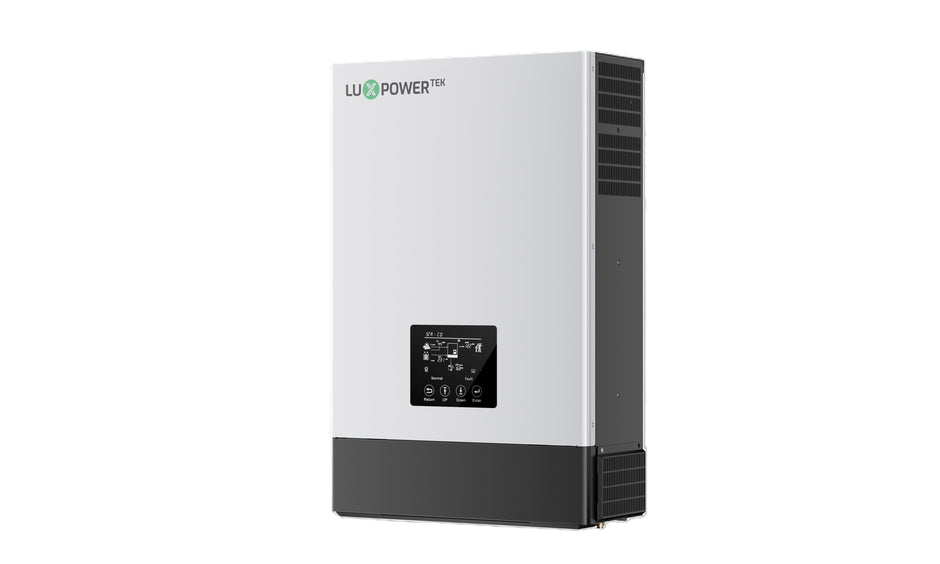

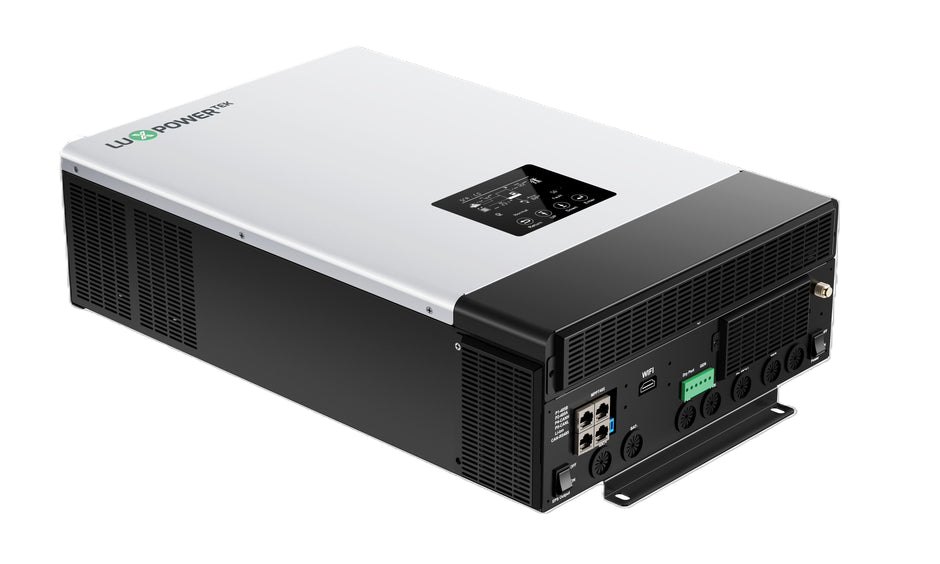

Luxpower 6kW Off-Grid Inverter SNA6000

A 6 kW off-grid (eco-hybrid) inverter designed to run independently of the grid or in sites with unreliable grid. It is optimized for pure off-grid usage with a built-in MPPT solar charger and generator input, making it a great replacement for generator-only setups.

Technical Specifications:

• AC Output: 6,000 W continuous output (230V AC, pure sine wave)
• Surge Power: 12,000W (2× surge capacity for motor start – e.g. pump motors, compressors)
• MPPT Inputs: 2 × MPPT – built-in solar charge controller for PV input
• Max PV Input: 8,000 W (up to 480V max, split as 4 kW per MPPT)
• MPPT Operating Range: 120–385V DC (optimal solar operating window)
• Max PV Input Current: 17 A per MPPT (34 A total); max short-circuit (Isc) 25 A per MPPT
• Battery Input: 48V DC (recommended battery bank 44–58 V operating range)
• Max Charging Current: 140A (up to 6 kW charge from solar or AC)
• Output Waveform: Pure sine wave (low <5% THD, suitable for sensitive electronics)
• Efficiency: ~93–95% (typical off-grid inverter efficiency; MPPT efficiency >98%)
• Transfer Time: <15ms (always powering loads from inverter in off-grid mode; seamless transition if generator assists)
• Generator Input: Yes – dedicated generator AC input (supports auto-start and up to 50–60 A input)
• Parallel Operation: Yes – supports up to 16 units in parallel for scaling to 48 kW (single-phase) or for 3-phase off-grid systems
• Features: Separate EPS output for critical loads, configurable generator exercise and fuel-saving modes, Unbalanced 3-Phase support (multiple units can form a three-phase system).
• Warranty: Comes with a standard 2-year manufacturer warranty
• Safety: Safety-certified (NRS097) for grid tie-in
