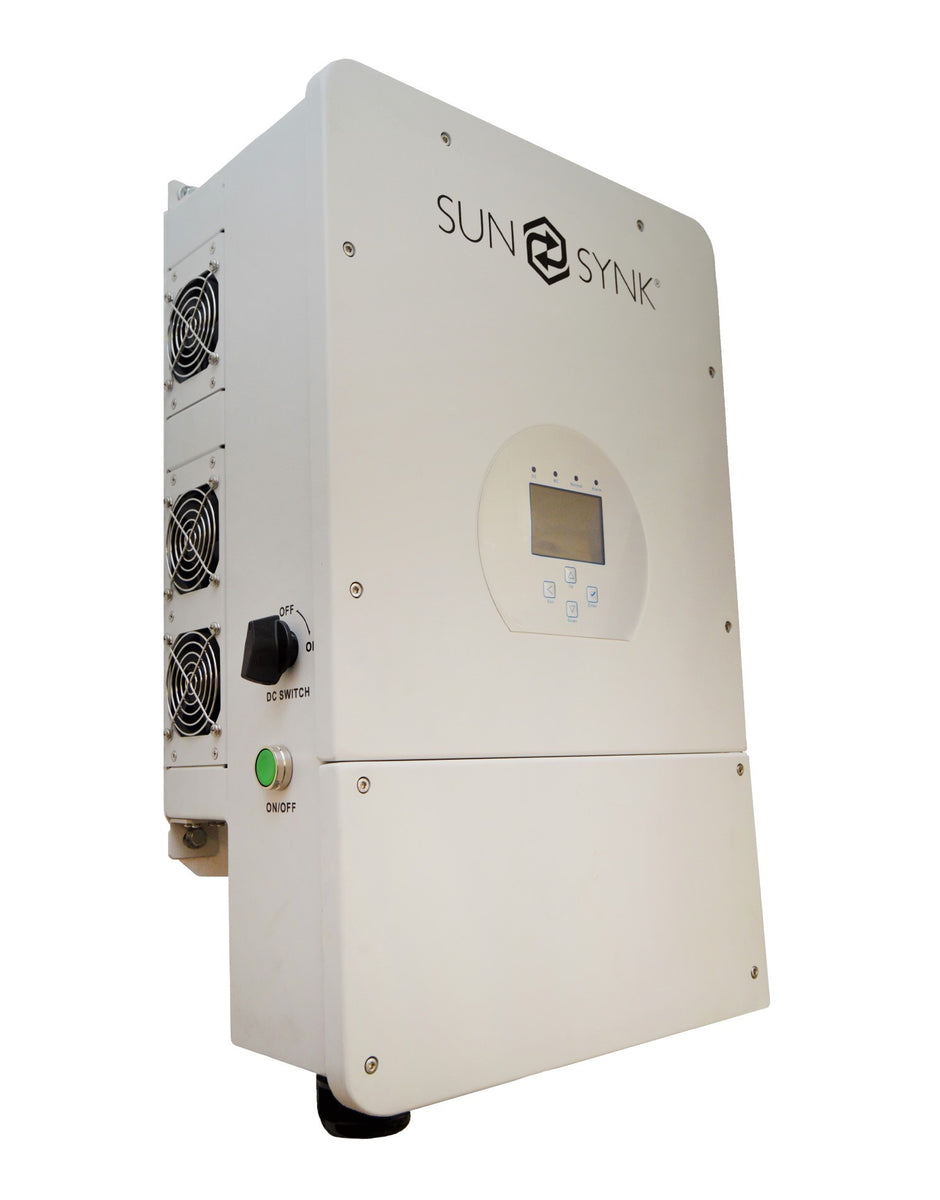

Sunsynk 5kW Inverter (Classic Model)

A popular 5kW hybrid inverter for residential solar-and-storage systems, known for its reliability and intelligent energy management. It seamlessly blends solar, battery, and grid power to maximize self-consumption and provides backup during outages.

Technical Specifications:

• AC Output: 5,000 W rated (5.5 kW max AC output for peak periods); pure sine-wave 230V output
• Surge Power: 10,000 W (up to 2× load rating for ~10 seconds for motor start)
• MPPT Inputs: 2 × MPPT (solar only)
• Max PV Input: 6,500 W (125–500 V DC range; 11 A per MPPT)
• MPPT Operating Range: 125–425 V DC for full power tracking
• Max PV Input Current: 11 A + 11 A (11A per MPPT)
• Battery Input: 48 V nominal (operates 40–60 V); works with various Li-ion/lead acid batteries
• Max Charging Current: 120 A (supports battery banks 5–20 kWh recommended; no fixed capacity limit)
• Output Waveform: Pure sine wave (<3% THD) for sensitive electronics
• Efficiency: Up to ~97.5% peak PV-to-AC conversion efficiency
• Generator Input: Yes (dedicated AC input for grid/generator; automatic transfer in <20 ms for UPS function)
• Parallel Operation: Yes (multiple 5kW units can run in parallel or split-phase; up to 15 units for large systems)
• Features: Dual MPPT design, integrated WiFi monitoring, time-of-use programmable, and seamless <20 ms switchover for UPS backup mode. Safety-certified (NRS097) for grid tie-in
• CANNOT be paralleled with Sunsynk 5kW inverter ECCO Model
• CAN only be parallelled with Sunsynk 5kW inverter Classic Model
