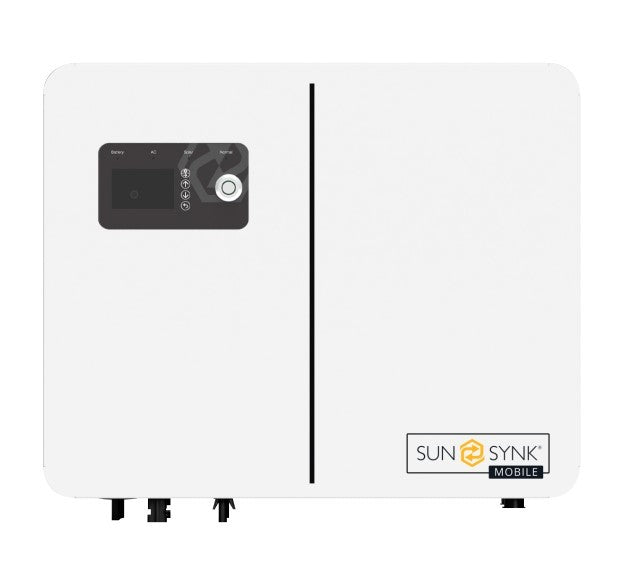

Sunsynk Lynks 6kW Inverter

A cost-effective hybrid inverter designed for seamless solar integration and battery readiness. It delivers up to 6,000 W continuous AC output with pure sine wave power, making it ideal for home or small business use.

Technical Specifications:

• AC Output: 6,000 W continuous (single-phase, pure sine wave)
• Surge Power: Up to 12,000 W for short periods (to support motor start-ups)
• MPPT Inputs: 2 × MPPT (solar PV only) – twin trackers for optimized solar harvest
• Max PV Input: 8,000 W total PV array (up to max 500 V DC, 15 A per MPPT)
• MPPT Operating Range: 120–450 V DC
• Battery Input: 48 V nominal (acceptable range 40–60 V)
• Max Battery Charge/Discharge: 100 A (configurable), supports battery banks from ~5 kWh up to ~100 kWh (100–2000 Ah recommended)
• Efficiency: >97% peak conversion efficiency
• Generator Input: Supported (dedicated AC input for generator)
• Parallel Operation: Supported (up to 15 units in parallel for higher power or for 3-phase systems)
• Display/Monitoring: Intelligent LCD display, App monitoring capability via Wifi
• Safety certifications: Safety-certified (NRS097) for grid tie-in
• Warranty: 5-year standard manufacturer warranty (extendable with approved battery pairing)
